Water/oil separator
SepDrain is suitable to separate oil from condensate into air compressed systems.
SepDrain is the very new condensate separator ready to offer you:
- 100% performance even on new synthetic compressor lubricants
- simplified maintenance
- concentrations of outgoing oil below 10 ppm/l
- saving-space solution
- recycled and eco-friendly materials
- high reliability
Its Twin System technology will allow you to double or triple the condensate treatment capacity and reduce the amount of residual contaminant.
| Sepdrain 1.7 | Sepdrain 2.8 | Sepdrain 8.5 | Sepdrain 21 | Sepdrain 42 | |
|---|---|---|---|---|---|
| Code | 65-965 | 65-961 | 65-962 | 65-963 | 65-964 |
| Nominal flow rate (m³/min) | 1.7 | 2.8 | 8.5 | 21 | 42 |
| Connection (BSP-F) | 1/4″ | 1/2″ | 1/2″ | 3/4″ | 3/4″ |
| Dimensions HxD (mm) | 220 x 145 | 460 x 200 | 600 x 280 | 930 x 430 | 930 x 430 (x2) |
| Weight (Kg) | 1 | 5 | 11 | 29 | 58 |

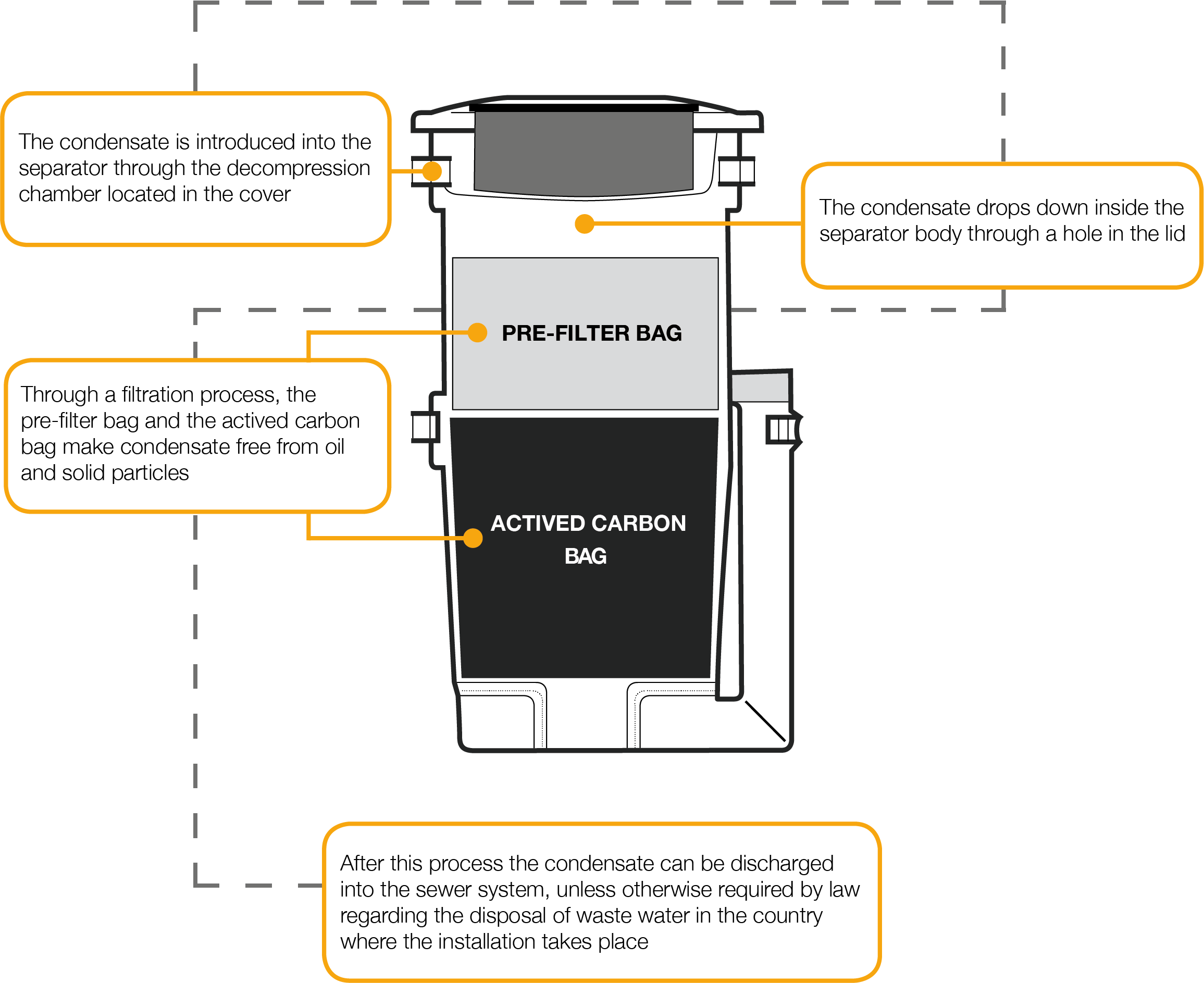

SepDrain operation
