LD203
| LD203 | 230 V | 115 V | 115 V UL | 24 V | 24 Vdc |
|---|---|---|---|---|---|
| Power supply (±10%) | 230 V (50/60 Hz) | 115 V (50/60 Hz) | 115 V (50/60 Hz) | 24 V (50/60 Hz) | 24 Vdc |
| Power (during drainage) | 10 VA | ||||
| Alarm contact | Contact NC/NO: 240V Ac max – 1A/30V Dc max – 1A | ||||
| Working pressure | 0,2-16 bar | ||||
| Working temperature | +1/+60 °C | ||||
| Protection class |
IP65 (With connector and correctly assembled gasket) |
||||
| Electric connection |
EN 175301-803 Type B (ex DIN 43650) (Supplied) |
||||
| Alarm connection | M12 Code A 4 Poles (Not supplied) | ||||
| Nominal flow (m³/min) (1) | 160 | ||||
| Nominal drain (lt/h) | 90 | ||||
| Maximum drain (lt/h) | 150 | ||||
| Maximum compressor capacity (m³/min) | 160 | ||||
| Maximum dryer capacity (m³/min) | 320 | ||||
| Maximum filter capacity (m³/min) | 1600 | ||||
| Raccordo ingresso |
1 x G1/2”F + 1 x G3/4”M – G1/2”F (2) |
2 x R1/2”F NPT |
1 x G1/2”F + 1 x G3/4”M – G1/2”F (2) |
||
| Outlet (with flow limiter) | 1 x ø12 | ||||
| Weight (Kg) | 1,8 | ||||
| Receiver volume (litri) | 0,5 | ||||
| Certificates | CE | CE+UL | CE | ||
| Code | 15-552 | 15-551 | 15-555 | 15-553 | 15-554 |
(1) = Data refer to 1000 mbar(a), 20° C and 60% relative humidity. Operating pressure 7 bar and outlet temperature of the aftercooler 35° C.
(2) = For NPT version, minimum purchase lots are required. Get in touch with the Customer Service.
DIMENSIONAL VIEW
Click on image to enlarge
SERVICE KIT – ACCESSORIES
-

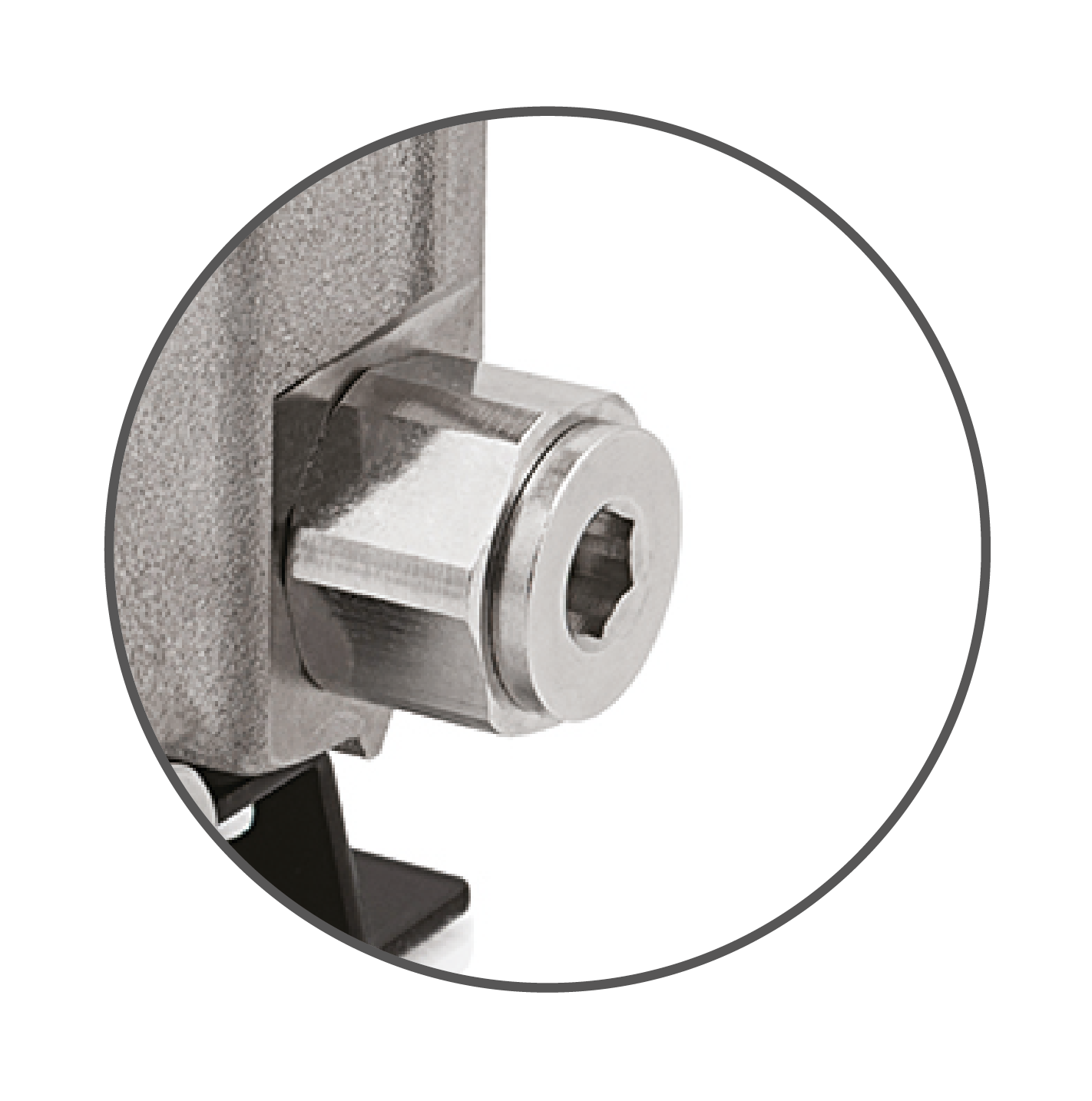

- KIT_027 – Maintenance kit with HEX socket plug
-
- KIT_029 – Filter with HEX socket plug
-
- KIT_031 – Maintenance kit valve body with HEX socket plug
-
- KIT_032 – Support brackets
-
- C686 – Thermo controlled resistance for candlestick
-
- F12 – Easy lock connection R 1/2” M with seal
-
- KIT_053 – Venting kit
